A Champion 3500- or 4000-watt generator that surges, hunts, runs only with partial choke or starts and dies often has a fuel-delivery problem. A restricted carburetor jet is common after storage, but stale fuel, a blocked cap vent, dirty filter, low-oil shutdown or ignition fault can produce similar symptoms.
Read the symptom before removing parts
- Runs better with choke: the mixture is probably lean because fuel flow is restricted or unwanted air is entering.
- Starts, then stops: check tank level, fuel valve, cap vent, bowl refill and low-oil system.
- Surges only under load: compare the connected load with generator capacity and inspect fuel flow and governor linkage.
- Black smoke or fuel smell: look for a stuck float, excessive choke or restricted air filter.
First checks after storage
Move the generator outdoors, shut it down and let it cool. Never service or run a gasoline generator in a building, garage or enclosed area because carbon monoxide can be fatal. Inspect the fuel for varnish odor, water or debris. Verify the shutoff valve is open, the cap vent works as designed and the air filter is serviceable.
Use the Champion model-specific manual for the approved fuel-flow and carburetor service procedure. Catch fuel in an approved container, keep ignition sources away and clean spills immediately. Do not enlarge a metering jet with a drill or hard wire; changing the opening can permanently alter the mixture.
When cleaning may be enough
If the carburetor is otherwise sound and debris is limited to the bowl or removable jet, careful cleaning with the correct solvent and compressed air may restore operation. Replace hardened gaskets and inspect the float and needle. If passages remain restricted, the body is corroded, the float leaks or repeated cleaning does not stabilize operation, replacement is usually more reliable.
Replacement and adjustment
Match engine displacement, mounting pattern, throttle and choke linkages, fuel inlet and any shutoff-solenoid connection. Photograph linkage routing before removal and disconnect the spark-plug lead. Do not bend the governor spring or change governed speed; incorrect speed can damage connected equipment.

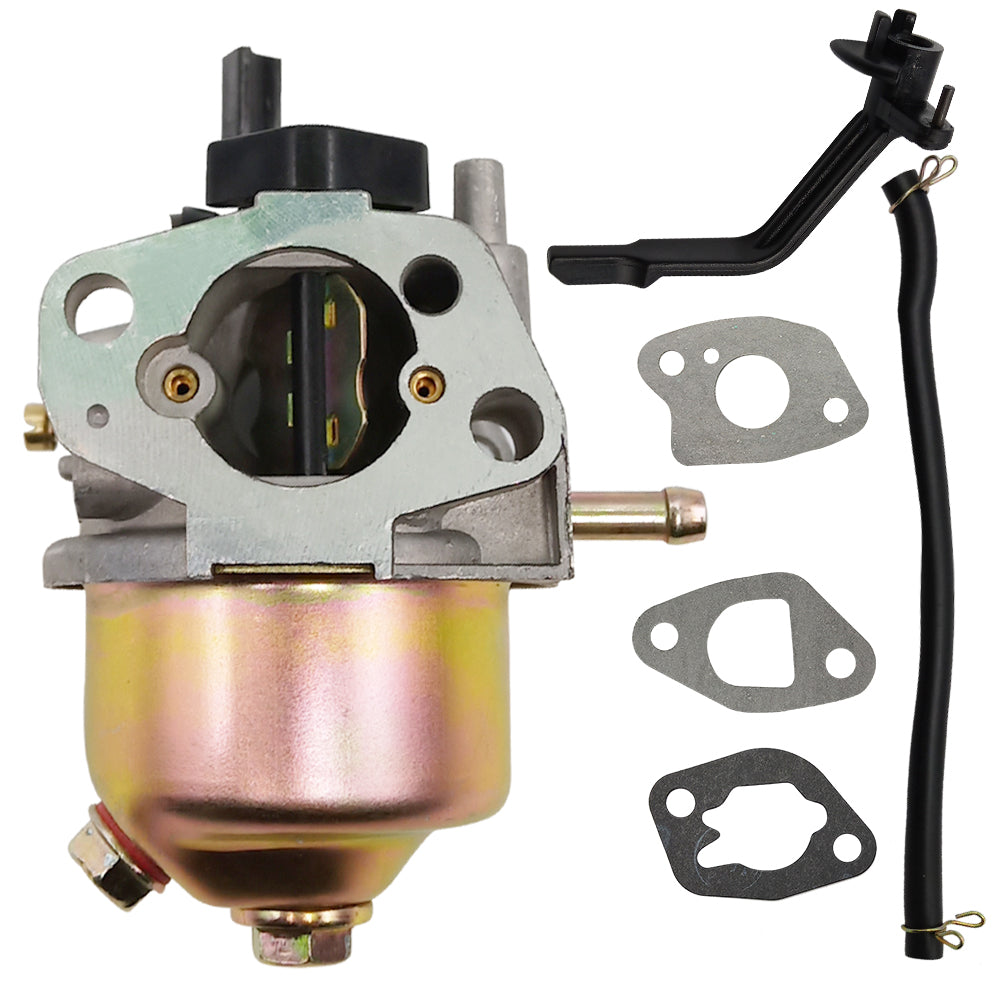

View the Triumilynn 196cc Champion generator carburetor and compare every connection with the original unit.
Post-repair test
- Check carefully for fuel leaks before starting.
- Start outdoors with no electrical load attached.
- Allow the engine to warm and move the choke fully to RUN.
- Add loads gradually while staying within rated capacity.
- Confirm stable speed and voltage using the manufacturer’s procedure.
Matched part: View the corresponding Triumilynn replacement part.
