A 36V or 48V golf cart needs a DC-to-DC voltage reducer before it can safely power most 12V lights, radios, USB outlets and accessories. Pulling 12 volts from only part of a multi-battery pack can unbalance the batteries; a correctly sized reducer draws from the pack and provides a stable 12V output.
Choose capacity before wiring
Add the current draw of every accessory that may operate at the same time, then leave reasonable headroom. A 10A, 120W converter is suitable only when the continuous and startup loads remain within its rating. Horns, amplifiers, compressors and motors can draw a brief surge well above their normal current.
Confirm the reducer’s allowed input range, output voltage, continuous rating, cooling requirements and compatibility with the cart’s battery chemistry. Do not assume wire colors are universal; follow the diagram supplied with the exact converter.
Plan a protected installation
- Turn the key off, set the parking brake and follow the cart manufacturer’s TOW/RUN and battery-disconnect procedure.
- Mount the converter in a ventilated, dry location away from moving parts and direct heat.
- Protect the input circuit with the correctly rated fuse or breaker close to the power source.
- Protect and distribute the 12V output through an appropriate fuse block.
- Use wire gauge, terminals and insulation rated for the current and environment.
Switched or always-on power?
An always-on reducer can create parasitic battery drain even when accessories are off. Some converters include an enable wire; other installations use a correctly rated relay controlled by a key-switched signal. The cart wiring diagram determines the safe approach. Do not connect accessory load directly to a low-current key-switch circuit.
Verify before connecting accessories
After all connections are secured and insulated, restore pack power using the manufacturer’s sequence. Measure converter output polarity and voltage with a multimeter before connecting any 12V device. Then add one load at a time while watching for voltage drop, overheating or unexpected shutdown.

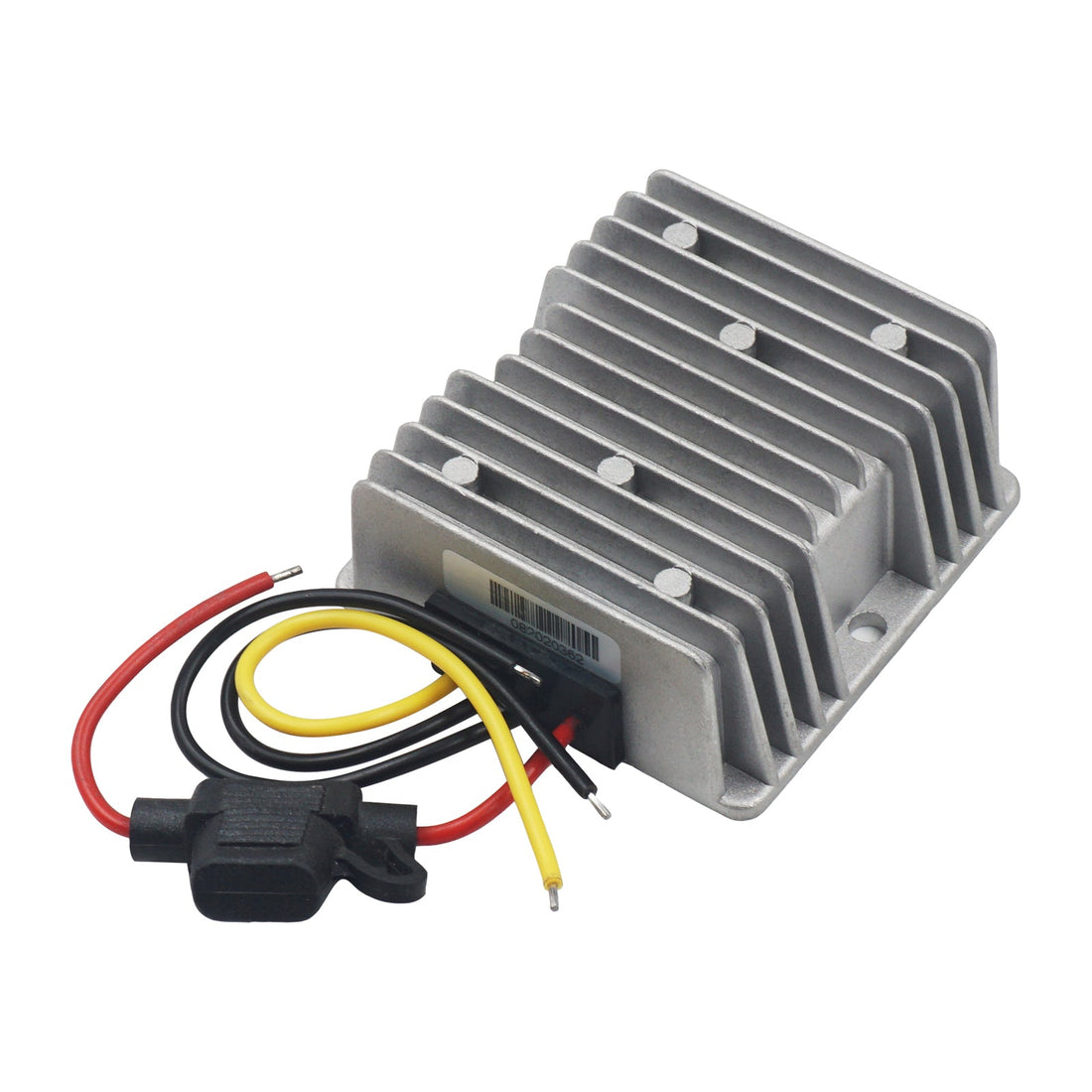

View the Triumilynn 36V/48V to 12V 10A voltage reducer. Confirm that the total accessory load stays below 10A and 120W.
Common mistakes to avoid
- Taking 12V from only one battery in a series pack.
- Omitting input and output circuit protection.
- Mounting the converter where water collects or heat cannot escape.
- Trusting wire color without the product diagram.
- Powering a load whose startup surge exceeds the reducer rating.
High-current battery packs can cause fire or serious injury if shorted. If you cannot identify pack positive, pack negative and the correct disconnect sequence, use a qualified golf-cart technician.
