A Honda GX620-powered machine with a dead battery, dim lights or charging voltage that does not rise may have a regulator-rectifier problem—but the battery, fuse, ground, connectors and charging stator should be tested first. Replacing the regulator without checking its inputs can leave the original fault untouched.
Typical charging-system symptoms
- The battery repeatedly needs external charging.
- Lights become dimmer during operation.
- A charging fuse opens or connectors show heat damage.
- Battery voltage is abnormally low or high with the engine running.
- The regulator housing or connector is discolored or damaged.
Overcharging can damage the battery and electronics, while undercharging can mimic a weak starter. Stop operating if the battery becomes hot, swollen or vents electrolyte.
Check the easy faults first
Identify the exact engine type and equipment wiring diagram. Inspect battery condition and terminals, charging fuse, engine-to-frame ground and regulator connector. Look for pushed-back pins, corrosion, loose crimps and wiring that has rubbed against the shroud or exhaust. Disconnect the battery using the equipment manufacturer’s sequence before repairing connections.
Separate stator output from regulation
The charging stator produces electrical input that the regulator-rectifier converts and controls. Use the GX620 service information to test stator resistance and AC output, then test regulated DC voltage at the battery under the specified conditions. Connector pinouts and acceptable readings can vary with charging-system version, so do not substitute a generic value.
If stator input and wiring are correct but DC output remains outside specification, the regulator-rectifier is a reasonable suspect. If stator output is missing, changing the regulator will not solve the problem.
Fitment matters

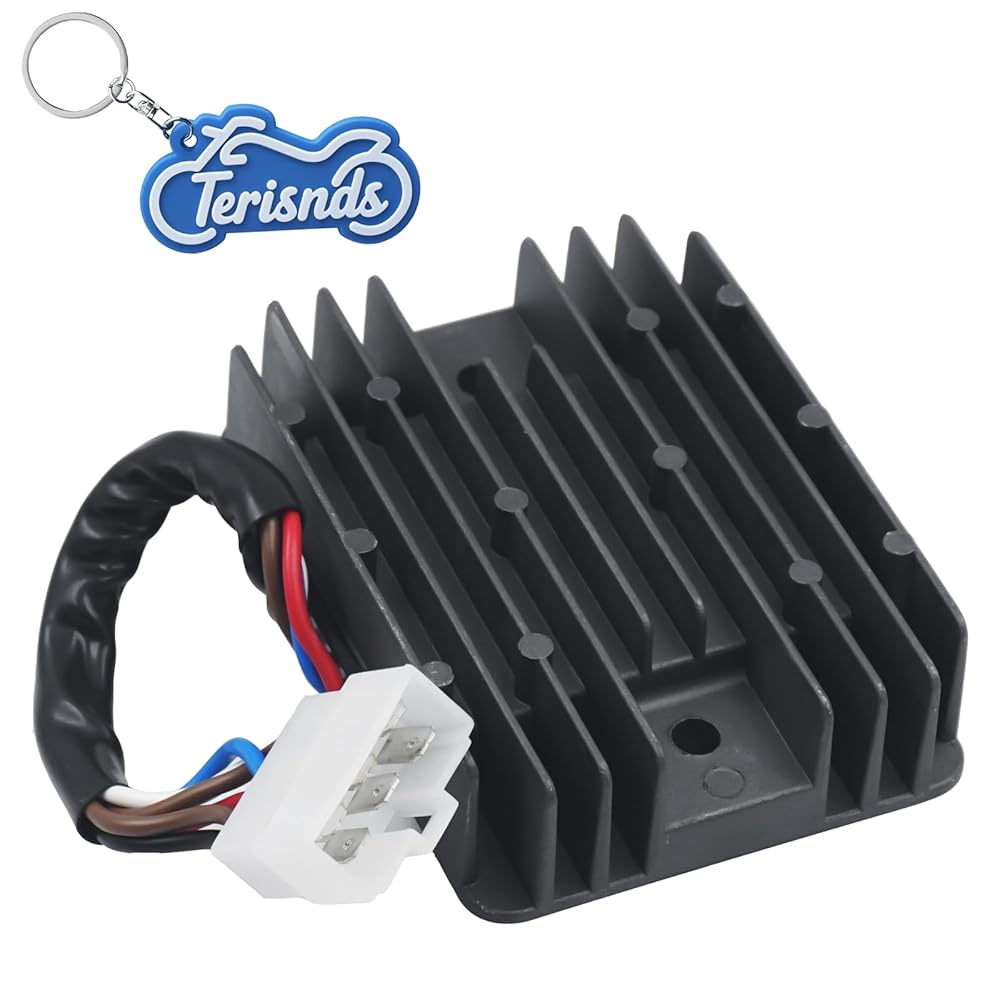

Match the original markings and reference number, including SH711AA or 31620-ZG5-033 where applicable. Compare connector shape, pin count, mounting spacing and equipment harness. Similar-looking regulators may use a different pinout.
Browse Triumilynn replacement parts and verify the GX620 engine code and original component before ordering.
Installation and final test
- Correct damaged connectors and grounds before installing a new unit.
- Mount the regulator securely so it can dissipate heat as designed.
- Route the harness away from hot and moving components.
- Reconnect the battery with correct polarity.
- Measure charging behavior using the manufacturer’s test conditions.
- Recheck the connector for heat after an initial controlled run.
Charging systems operate near rotating and hot engine parts. If testing requires access while the engine runs, keep leads secured and use a qualified technician when safe access is not possible.
