You walk out, hop on the Sportsman, go to twist the key and it just won't budge. Or it turns but nothing happens. No dash lights, no click, dead. Meanwhile the battery is fine and everything else on the machine works. If that's what you're dealing with, there's a good chance the ignition switch itself is going bad, and on a lot of these Polaris rigs that's a five-dollar-symptom that turns into a no-ride weekend.
I've swapped a fair number of these switches over the years on both Sportsman ATVs and Ranger UTVs. Part numbers 4012165 and 4011002 cover a huge chunk of the lineup, and the failure pattern is usually pretty consistent once you know what to look at. Let me walk you through how to tell it's actually the switch and not the ten other things people chase first.
What a failing ignition switch actually feels like
There are really two flavors of failure here, and they look different.
The first is mechanical. The key won't turn, or it turns rough and gritty, or it turns but feels sloppy and loose like the tumbler is worn out. Guys will jiggle it, wiggle the handlebars, spray a shot of WD-40 or graphite down the keyway, and every so often it frees up for a while. That's a classic worn-tumbler tell. If you've had to fight the key to turn for a couple weeks and now it flat-out won't go, the switch is on its way out.
The second flavor is electrical, and it's sneakier. The key turns fine but the machine acts dead or half-dead. You might get dash power that flickers on and off when you're sitting in accessory, or the engine cuts out over a bump and comes back, or you turn to start and get nothing at all. Heat and vibration make it worse, so it'll often act up after the machine's been running a while and then be fine cold the next morning. That intermittent behavior throws people off because a dead battery doesn't come and go like that.
How to separate the switch from everything else
Before you order a switch, rule out the easy stuff. Nine times out of ten a no-start on these is a weak battery or a bad connection, not the switch, so start there.
Check the battery first. You want to see around 12.6 volts sitting, and it shouldn't crater the second you hit the starter. Load-test it or throw it on a charger overnight and re-check. A battery that reads 12.6 but drops to 9 under load will mimic a switch problem all day.
Next, listen to what happens when you turn the key to start. This is the single most useful test. If you get a solid click from the solenoid but no crank, your problem is downstream of the switch. The switch did its job and sent the signal. Look at the solenoid, the solenoid ground, the starter, and the battery cables. The old shop line is true here: if it clicks after you turn the key, the fault usually isn't the ignition switch.
If you turn to start and get absolutely nothing, no click at all, no dash, that points back upstream toward the switch, the ignition fuse, or the wiring between them. Don't forget the safety interlocks either. Polaris runs a neutral/park safety switch on a lot of these, and if it's out of adjustment or failing it'll block the start signal even when you're sitting in park. Try it in a different gear position, or wiggle the shifter into a solid detent, and see if it wakes up.

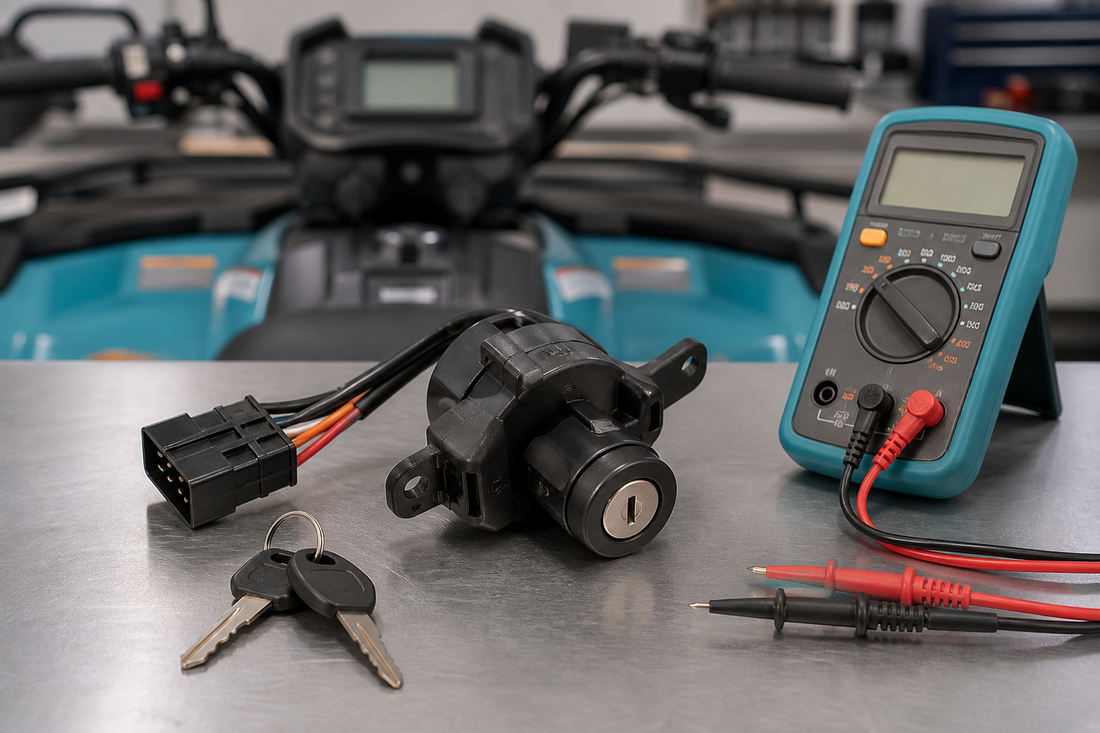

To actually confirm the switch, grab a multimeter. Back-probe the output side of the switch connector and have someone turn the key to on and then to start. You should see battery voltage show up on the output when the key's turned. Power in, no power out means the switch is bad. That one check saves you from guessing.
Replacing the switch
The job itself isn't bad. Disconnect the battery first so you're not fighting live wires around the dash. Get to the back of the switch, unplug the connector, and back off the retaining nut or clip holding the switch in the panel. Note how the old one sits so you drop the new one in the same orientation.
The 4011002 Ranger switch is a 6-pin, 3-position unit, and the plug is keyed so it only goes one way. Here's the part that bites more people than the actual install: after you plug the new connector on, make sure it fully clicks and seats. A connector that's pushed on but not latched is the number one reason folks swap a switch and still have no start. If the new switch does nothing, unplug and re-seat it before you assume you got a bad part.
Reconnect the battery, turn the key, and you should be back. While you're in there, it's worth eyeballing the wiring going into the connector for green corrosion or a melted pin, because a chronically loose or corroded connection can cook a switch. That's part of why some older Rangers seem to "eat" switches, the underlying wiring or a poor connection keeps stressing the new one.
Picking the right replacement
Match your part number to your machine. 4012165 and 4011002 between them cover a wide spread of Sportsman 400 through 800 and Ranger 500 through 900 XP, but there are a couple of different switch styles across model years, so check the plug and the number stamped on your old switch before you buy. If you're not sure, pull the old one and compare the connector.
We carry a direct-fit replacement that plugs right into these harnesses, keyed connector and all, no splicing. You can see the fitment and part details on our Polaris Sportsman/Ranger ignition key switch page. It ships with keys, so you're not stuck re-using a worn set.
One last thing. If you swap the switch and the machine fires right up, great. If it still won't start but now you're getting voltage out of the new switch, you've at least narrowed it down. Move on to the fuse, the safety switch, and the solenoid ground, in that order. Don't just keep throwing switches at it.
