A TTR that runs briefly and stalls, leaks while parked or will not switch cleanly between positions may have a tank valve problem, but the cap vent and fuel line should be checked at the same time.
Symptoms to identify first
- Fuel seeps while the vehicle is parked
- Engine runs briefly and then starves for fuel
- Valve is stiff or will not select every position
- Reserve function no longer works correctly
Diagnose the system before replacing the part
Work with a cool engine and inspect the cap vent, tank debris, screen, hose and carburetor inlet. Confirm whether the valve is manual or vacuum-operated. Restricted flow upstream or a blocked carburetor can mimic a faulty petcock.
Fitment checks that prevent a wrong order
Compare tank thread or bolt pattern, outlet direction, hose diameter, knob or lever interface and ON/OFF/RESERVE markings. Verify model years and original number where listed.

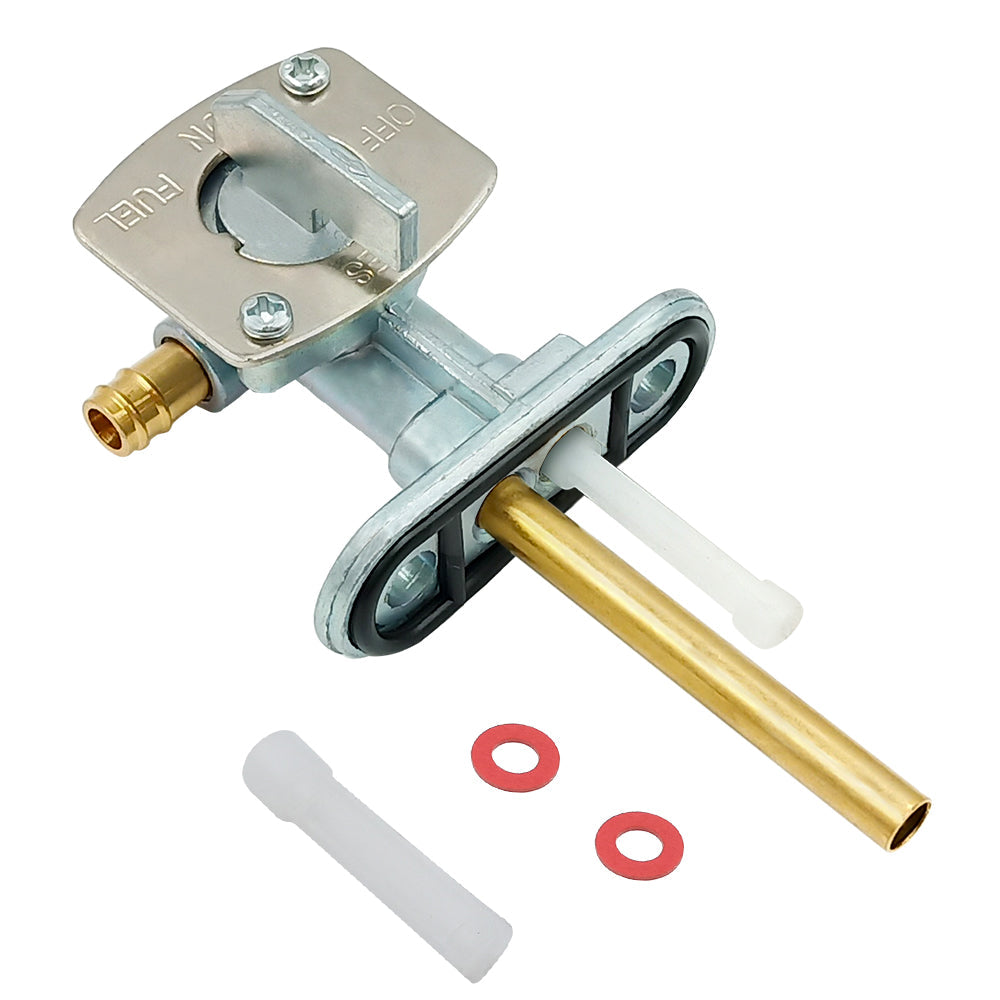

For this application, compare the original component with Fuel Valve Petcock for Yamaha TTR90 TTR125 TTR225 TTR230 TTR250 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011. Verify the listed vehicle or engine, year range and reference numbers against the equipment you are servicing.
Installation and final safety checks
Drain or isolate fuel safely, keep ignition sources away and replace damaged seals or hose. Do not force a cross-threaded valve into the tank. After installation, test every position and inspect for seepage before running the engine.
View the matching Triumilynn replacement part and complete fitment details.
When should you ask a technician?
Stop and use a qualified technician when the repair requires specifications you do not have, involves a safety-critical system, exposes high-current wiring or fuel, or the diagnosis remains uncertain after the basic checks. Replacing parts without confirming the cause can create a repeat failure or conceal a more serious problem.
Matched part: View the corresponding Triumilynn replacement part.
